DIFY chatBI demo实现

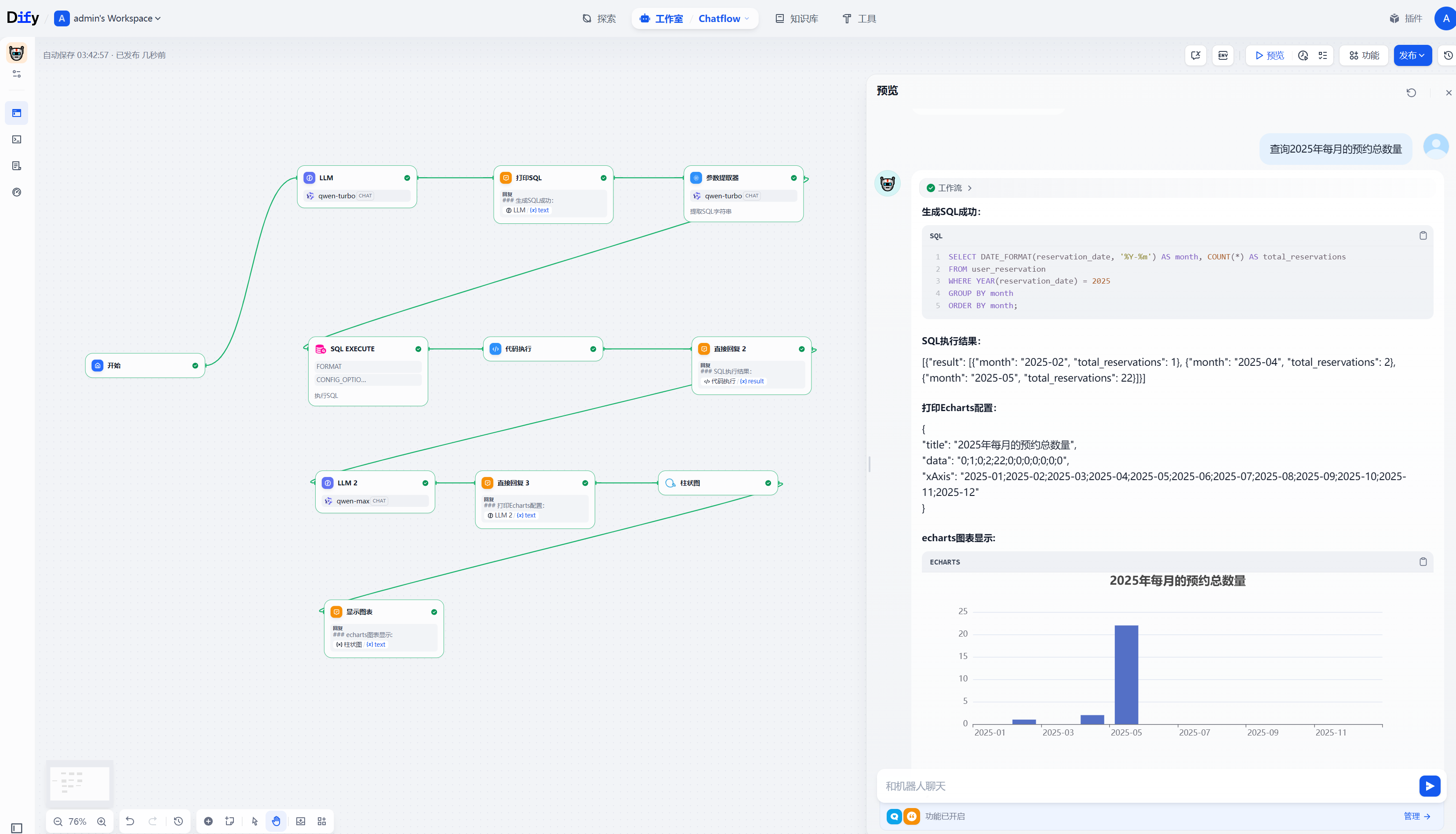

开局一张图，余下全靠编！
app:
description: ''
icon:
icon_background: '#FFEAD5'
mode: advanced-chat
name: Chatflow
use_icon_as_answer_icon: false
dependencies:
- current_identifier: null
type: marketplace
value:
marketplace_plugin_unique_identifier: hjlarry/database:0.0.6@2f547ea4b80c5bbec2b953843a37de9aff7427d276b763a8e237c6b2188359b3
- current_identifier: null
type: marketplace
value:
marketplace_plugin_unique_identifier: langgenius/echarts:0.0.1@fe95412f101f2735530ea05f479ab5e8fbe1d4f4b2847f09e490e7d1d0125de5
- current_identifier: null
type: marketplace
value:
marketplace_plugin_unique_identifier: langgenius/tongyi:0.0.25@325423749d5e71f8b4681af1b2ed46d7686cb1947e443a86ba5d14ac45ff85a4
kind: app
version: 0.3.0
workflow:
conversation_variables: []
environment_variables: []
features:
file_upload:
allowed_file_extensions:
- .JPG
- .JPEG
- .PNG
- .GIF
- .WEBP
- .SVG
allowed_file_types:
- image
allowed_file_upload_methods:
- local_file
- remote_url
enabled: false
fileUploadConfig:
audio_file_size_limit: 50
batch_count_limit: 5
file_size_limit: 15
image_file_size_limit: 10
video_file_size_limit: 100
workflow_file_upload_limit: 10
image:
enabled: false
number_limits: 3
transfer_methods:
- local_file
- remote_url
number_limits: 3
opening_statement: 欢迎使用预约智能AI分析工具
retriever_resource:
enabled: true
sensitive_word_avoidance:
enabled: false
speech_to_text:
enabled: false
suggested_questions:
- 查询2025年每月的预约总数量
suggested_questions_after_answer:
enabled: false
text_to_speech:
enabled: false
language: ''
voice: ''
graph:
edges:
- data:
sourceType: start
targetType: llm
id: 1748232717514-llm
selected: false
source: '1748232717514'
sourceHandle: source
target: llm
targetHandle: target
type: custom
- data:
isInLoop: false
sourceType: parameter-extractor
targetType: tool
id: 1748238509042-source-1748233419496-target
source: '1748238509042'
sourceHandle: source
target: '1748233419496'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: llm
targetType: answer
id: llm-source-1748238559410-target
source: llm
sourceHandle: source
target: '1748238559410'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: answer
targetType: parameter-extractor
id: 1748238559410-source-1748238509042-target
source: '1748238559410'
sourceHandle: source
target: '1748238509042'
targetHandle: target
type: custom
zIndex: 0
- data:
isInIteration: false
isInLoop: false
sourceType: llm
targetType: answer
id: 1748241163811--1748241283508-target
source: '1748241163811'
sourceHandle: source
target: '1748241283508'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: code
targetType: answer
id: 1748240618227-source-1748240646067-target
source: '1748240618227'
sourceHandle: source
target: '1748240646067'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: answer
targetType: tool
id: 1748241283508-source-1748241638404-target
source: '1748241283508'
sourceHandle: source
target: '1748241638404'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: tool
targetType: answer
id: 1748241638404-source-1748242416972-target
source: '1748241638404'
sourceHandle: source
target: '1748242416972'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: tool
targetType: code
id: 1748233419496-source-1748240618227-target
selected: false
source: '1748233419496'
sourceHandle: source
target: '1748240618227'
targetHandle: target
type: custom
zIndex: 0
- data:
isInLoop: false
sourceType: answer
targetType: llm
id: 1748240646067-source-1748241163811-target
source: '1748240646067'
sourceHandle: source
target: '1748241163811'
targetHandle: target
type: custom
zIndex: 0
nodes:
- data:
desc: ''
selected: false
title: 开始
type: start
variables: []
height: 53
id: '1748232717514'
position:
x: -261.1634114341191
y: 394.57243878970934
positionAbsolute:
x: -261.1634114341191
y: 394.57243878970934
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
context:
enabled: true
variable_selector:
- sys
- query
desc: ''
memory:
query_prompt_template: '{{#sys.query#}}'
role_prefix:
assistant: ''
user: ''
window:
enabled: false
size: 10
model:
completion_params: {}
mode: chat
name: qwen-turbo
provider: langgenius/tongyi/tongyi
prompt_template:
- id: fd785178-20e4-48e1-bcf4-715086728dd2
role: system
text: "# 你是数据分析专家，精通MYSQL，能够根据用户的问题生成高效的SQL查询并执行SQL返回结果， 详细规则如下\n\n## 核心规则\n\
1. 仅使用提供的数据库表结构和字段，且只能使用SELECT关键字，不允许使用udpate和delete\n2. 确保SQL语句兼容MYSQL语法\n\
3.输出一个完整的SQL语句字符串，无注释，不用markdown格式，只要纯SQL字符串\n\n \n## 数据库表结构 \n### 1.\
\ user（用户表）\n#### 字段说明\n- id: 用户ID\n- username: 用户姓名\n- phone: 用户电话\n\n\
### 2. patient（患者表）\n#### 字段说明\n- name: 姓名\n- gender: 性别\n- birthday:患者生日\n\
\n### 3. user_reservation（预约记录表）\n#### 字段说明\n- id: 主键\n- user_id: 用户ID\n\
- patient_id:患者ID\n- reservation_date: 预约日期\n- reservation_time: 预约时段\n\
- status: 预约状态\n- create_time: 创建日期\n\n\n## 查询技巧\n### 聚合函数\n- COUNT():\
\ 计算数量\n- AVG(): 计算平均值\n- SUM(): 计算总和\n- MAX()/MIN(): 获取最大/最小值\n \n##\
\ 注意事项 \n1. 合理使用JOIN条件\n2. 注意日期格式的一致性\n3. 使用适当的sql语句以提高查询效率\n\n## 输出格式\n\
1. 仅输出SQL字符串，不包含格式\n\n\n"
selected: false
structured_output_enabled: false
title: LLM
type: llm
variables: []
vision:
enabled: false
height: 89
id: llm
position:
x: 162.8960109055606
y: 18.948076705679185
positionAbsolute:
x: 162.8960109055606
y: 18.948076705679185
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
desc: 执行SQL
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: llm
human_description:
en_US: The SQL query string.
ja_JP: The SQL query string.
pt_BR: The SQL query string.
zh_Hans: SQL 查询语句。
label:
en_US: SQL Query
ja_JP: SQL Query
pt_BR: SQL Query
zh_Hans: SQL 查询语句
llm_description: The SQL query string.
max: null
min: null
name: query
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: Optional, Filling in this field will overwrite the database connection
entered during authorization.
ja_JP: Optional, Filling in this field will overwrite the database connection
entered during authorization.
pt_BR: Optional, Filling in this field will overwrite the database connection
entered during authorization.
zh_Hans: 选填，填写后将覆盖授权时填写的数据库连接。
label:
en_US: DB URI
ja_JP: DB URI
pt_BR: DB URI
zh_Hans: DB URI
llm_description: ''
max: null
min: null
name: db_uri
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
- auto_generate: null
default: json
form: form
human_description:
en_US: Choose the output format.
ja_JP: Choose the output format.
pt_BR: Choose the output format.
zh_Hans: 选择输出格式。
label:
en_US: Output format
ja_JP: Output format
pt_BR: Output format
zh_Hans: 输出格式
llm_description: ''
max: null
min: null
name: format
options:
- label:
en_US: JSON
ja_JP: JSON
pt_BR: JSON
zh_Hans: JSON
value: json
- label:
en_US: CSV
ja_JP: CSV
pt_BR: CSV
zh_Hans: CSV
value: csv
- label:
en_US: YAML
ja_JP: YAML
pt_BR: YAML
zh_Hans: YAML
value: yaml
- label:
en_US: Markdown
ja_JP: Markdown
pt_BR: Markdown
zh_Hans: Markdown
value: md
- label:
en_US: Excel
ja_JP: Excel
pt_BR: Excel
zh_Hans: Excel
value: xlsx
- label:
en_US: HTML
ja_JP: HTML
pt_BR: HTML
zh_Hans: HTML
value: html
placeholder: null
precision: null
required: false
scope: null
template: null
type: select
- auto_generate: null
default: null
form: form
human_description:
en_US: 'Optional. For example {"connect_args": {"ssl": {"ca": "/path/to/ca.pem"}}}
More connection options can be found at https://docs.sqlalchemy.org/en/20/core/engines.html#sqlalchemy.create_engine
'
ja_JP: 'Optional. For example {"connect_args": {"ssl": {"ca": "/path/to/ca.pem"}}}
More connection options can be found at https://docs.sqlalchemy.org/en/20/core/engines.html#sqlalchemy.create_engine
'
pt_BR: 'Optional. For example {"connect_args": {"ssl": {"ca": "/path/to/ca.pem"}}}
More connection options can be found at https://docs.sqlalchemy.org/en/20/core/engines.html#sqlalchemy.create_engine
'
zh_Hans: '选填项。例如 {"connect_args": {"ssl": {"ca": "/path/to/ca.pem"}}}
更多连接选项可参考 https://docs.sqlalchemy.org/en/20/core/engines.html#sqlalchemy.create_engine
'
label:
en_US: DB Config Options
ja_JP: DB Config Options
pt_BR: DB Config Options
zh_Hans: 数据库连接配置选项
llm_description: ''
max: null
min: null
name: config_options
options: []
placeholder: null
precision: null
required: false
scope: null
template: null
type: string
params:
config_options: ''
db_uri: ''
format: ''
query: ''
provider_id: hjlarry/database/database
provider_name: hjlarry/database/database
provider_type: builtin
selected: false
title: SQL Execute
tool_configurations:
config_options: null
format: ''
tool_description: 此工具用于在已存在的数据库中执行 SQL 查询。
tool_label: SQL Execute
tool_name: sql_execute
tool_parameters:
db_uri:
type: mixed
value: mysql+pymysql://root:root@localhost:3306/homecare
query:
type: mixed
value: '{{#1748238509042.text#}}'
type: tool
height: 143
id: '1748233419496'
position:
x: 185.20036537094296
y: 361.35120425039713
positionAbsolute:
x: 185.20036537094296
y: 361.35120425039713
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
desc: 提取SQL字符串
model:
completion_params:
temperature: 0.7
mode: chat
name: qwen-turbo
provider: langgenius/tongyi/tongyi
parameters:
- description: 提取SQL语句
name: text
required: false
type: string
query:
- llm
- text
reasoning_mode: prompt
selected: false
title: 参数提取器
type: parameter-extractor
variables: []
vision:
enabled: false
height: 117
id: '1748238509042'
position:
x: 936.6553264450904
y: 18.948076705679185
positionAbsolute:
x: 936.6553264450904
y: 18.948076705679185
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
answer: '
### 生成SQL成功：
{{#llm.text#}}'
desc: ''
selected: false
title: 打印SQL
type: answer
variables: []
height: 120
id: '1748238559410'
position:
x: 555.9930526737288
y: 18.948076705679185
positionAbsolute:
x: 555.9930526737288
y: 18.948076705679185
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
code: "import json\n\ndef main(arg1: str) -> str:\n\n return {\n \
\ \"result\": json.dumps(arg1)\n }\n"
code_language: python3
desc: ''
outputs:
result:
children: null
type: string
selected: false
title: 代码执行
type: code
variables:
- value_selector:
- '1748233419496'
- json
variable: arg1
height: 53
id: '1748240618227'
position:
x: 535.1723860641345
y: 361.35120425039713
positionAbsolute:
x: 535.1723860641345
y: 361.35120425039713
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
answer: '
### SQL执行结果：
{{#1748240618227.result#}}'
desc: ''
selected: false
title: 直接回复 2
type: answer
variables: []
height: 120
id: '1748240646067'
position:
x: 952.4894213743651
y: 361.35120425039713
positionAbsolute:
x: 952.4894213743651
y: 361.35120425039713
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
context:
enabled: true
variable_selector:
- '1748240618227'
- result
desc: ''
model:
completion_params: {}
mode: chat
name: qwen-max
provider: langgenius/tongyi/tongyi
prompt_template:
- id: c21f1c09-011f-4b51-a6ec-d5edc4dc0fb8
role: system
text: '请根据用户的问题 {{#sys.query#}}，并结合执行结果 {{#context#}}，如果数据中有缺失的年/月/日，请按照以下规则补全数据：
1. 缺失的日期应按照时间序列及正确的日期格式补全。
2. 缺失的数据点应使用 0 表示，且顺序必须和日期对应。
根据补全后的数据生成开源图表库echarts，生成Echarts所需要的option配置JSON。并提取title, data, xAxis
数据。
'
selected: false
structured_output:
schema:
additionalProperties: false
properties:
data:
description: series中的data数据，数据用;分隔
type: string
title:
description: 标题
type: string
xAxis:
description: xAxis中的data数据，数据用;分隔
type: string
required: []
type: object
structured_output_enabled: true
title: LLM 2
type: llm
variables: []
vision:
enabled: false
height: 89
id: '1748241163811'
position:
x: 199.30314102594036
y: 629.5077951264029
positionAbsolute:
x: 199.30314102594036
y: 629.5077951264029
selected: true
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
answer: '
### 打印Echarts配置：
{{#1748241163811.text#}}'
desc: ''
selected: false
title: 直接回复 3
type: answer
variables: []
height: 120
id: '1748241283508'
position:
x: 519.1372359552149
y: 629.5077951264029
positionAbsolute:
x: 519.1372359552149
y: 629.5077951264029
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
desc: ''
is_team_authorization: true
output_schema: null
paramSchemas:
- auto_generate: null
default: null
form: llm
human_description:
en_US: chart title
ja_JP: chart title
pt_BR: chart title
zh_Hans: 图表的标题
label:
en_US: title
ja_JP: title
pt_BR: title
zh_Hans: 标题
llm_description: chart title
max: null
min: null
name: title
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: data for generating chart, each number should be separated by ";"
ja_JP: data for generating chart, each number should be separated by ";"
pt_BR: data for generating chart, each number should be separated by ";"
zh_Hans: 用于生成柱状图的数据，每个数字之间用 ";" 分隔
label:
en_US: data
ja_JP: data
pt_BR: data
zh_Hans: 数据
llm_description: data for generating bar chart, data should be a string
contains a list of numbers like "1;2;3;4;5"
max: null
min: null
name: data
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
- auto_generate: null
default: null
form: llm
human_description:
en_US: X axis for chart, each text should be separated by ";"
ja_JP: X axis for chart, each text should be separated by ";"
pt_BR: X axis for chart, each text should be separated by ";"
zh_Hans: 柱状图的 x 轴，每个文本之间用 ";" 分隔
label:
en_US: X Axis
ja_JP: X Axis
pt_BR: X Axis
zh_Hans: x 轴
llm_description: x axis for bar chart, x axis should be a string contains
a list of texts like "a;b;c;1;2" in order to match the data
max: null
min: null
name: x_axis
options: []
placeholder: null
precision: null
required: true
scope: null
template: null
type: string
params:
data: ''
title: ''
x_axis: ''
provider_id: langgenius/echarts/echarts
provider_name: langgenius/echarts/echarts
provider_type: builtin
selected: false
title: 柱状图
tool_configurations: {}
tool_description: 柱状图
tool_label: 柱状图
tool_name: bar_chart
tool_parameters:
data:
type: mixed
value: '{{#1748241163811.structured_output.data#}}'
title:
type: mixed
value: '{{#1748241163811.structured_output.title#}}'
x_axis:
type: mixed
value: '{{#1748241163811.structured_output.xAxis#}}'
type: tool
height: 53
id: '1748241638404'
position:
x: 885.2461994482006
y: 629.5077951264029
positionAbsolute:
x: 885.2461994482006
y: 629.5077951264029
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
- data:
answer: '
### echarts图表显示:
{{#1748241638404.text#}}'
desc: ''
selected: false
title: 显示图表
type: answer
variables: []
height: 120
id: '1748242416972'
position:
x: 216.86096089523693
y: 887.581433467046
positionAbsolute:
x: 216.86096089523693
y: 887.581433467046
selected: false
sourcePosition: right
targetPosition: left
type: custom
width: 244
viewport:
x: 272.23673982535047
y: 178.98752872388164
zoom: 0.7578582832551991
============ 欢迎各位老板打赏~ ===========
